Hand-held Camera Microscopes Comparison Chart

ProScope Mobile

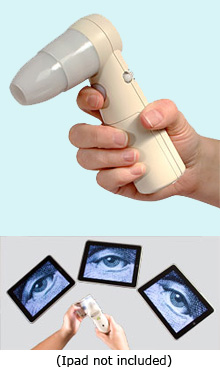

ProScope Mobile is the first Wi-Fi digital camera microscope available. The ProScope Mobile displays live images wirelessly to an iPhone, iPad, or iPod touch. It creates its own Wi-Fi network, allowing iOS devices within range to connect to it and display the live image on many screens simultaneously using the free app. View magnified images of any manufactured material from fibers and plastic to metal, for quality control.

Images can be captured simultaneously to all devices using the capture button on the camera handset; the images are saved right on the iPad/iPhone/iPod touch and Windows PC for viewing and storing for reference. The ProScope Mobile is battery powered and uses the same lenses (1x up to 400x) and accessories as the ProScope HR2 and the Scope On A Rope L2.

Free App is now available for the ProScope Mobile at the Apple Store..

Industry Application

• Completely wireless, battery powered, and completely portable for viewing anywhere in the world
• Easily and instantly share captured images through text/email messaging, or download to a computer
• "Touch & View" lenses allow you to magnify images by touching them with the microscope lens tip. Focuses instantly. No knobs to turn or squinting through an eyepiece.
• Examine surfaces for defects or inconsistencies or for visual inspection of parts and components
• Most efficient way to quickly examine objects for quality control
• Create high resolution magnified images for further analysis
• Document errors, flaws, and inconsistent results with digital or video recordings
• View fabrics, metal surfaces, electronics, plastics or other materials
• Examine print material for quality and consistency
• View stamps, coins, jewelry, gems, rocks and minerals
• Better viewing of shiny and reflective metal and other surfaces when the polarized 30x lens option is used


Part #

List Price

Quantity 1

Quantity 5

Quantity 10

ProScope Mobile Camera - Proscope Mobile camera with no lens (lens is required for use), includes AirMicro app PM-WiFi $299




ProScope Mobile Camera - Proscope Mobile camera with 50x lens, includes AirMicro app PM-Wifi 50x $399




ProScope Mobile 30x Inspection Camera -ProScope Mobile, 30x lens (polarizing), Mac/PC software PM-WiFi30 $594




ProScope Mobile 100x Inspection Camera -ProScope Mobile, 100x lens, Mac/PC software PM-WiFi100 $594




ProScope Mobile 200x Inspection Camera -ProScope Mobile, 200x lens, Mac/PC software PM-WiFi200 $594




ProScope Mobile 4 Lens Kit - ProScope Mobile w/1-10x, 50x, 100x, 200x lenses, Small Carrying Case PM-Basic4 $835




ProScope Mobile Complete Kit - ProScope Mobile w/1-10x, 50x, 100x, 200x lenses, Hard Carrying Case (small), Gooseneck Stand PM-Complete $984






Hardware Specs:
• Available Lenses: 1-10x, 30x polarizing, 30x Side-lighting, 50x, 50x Polarizing, 100x, 200x, 400x, microscope adaptor, all internally lit LED (except 1-10x, microscope adaptor)
• Image sensor: 1/4" CMOS
• Resolution: 640x480, 320x240
• Output: Wi-Fi IEEE802.11b, 2.4 GHz bandwidth
• Operation Range: about 10m
• Power source: 3 AA batteries (Alkaline, Ni-MH)
• Power consumption: about 2.5W
• Continuous Operation Time: Alkaline – about 2 hrs, Ni-MH – about 3 hrs (depending on environment)
• White Balance: Automatic with manual control
• Color Adjustments: Factory Preset
• Operating Temperature Range: 0 to 40 degrees Celsius
• Weight: 130g (main unit with lens, without battery)
• Warranty: one year

System Requirements:
iPhone: 4 or newer with AirMicro app installed
iPad with AirMicroPad app installed
iPod touch with AirMicro app installed

Download specs (PDF)
